MCH-20G 480 L/day (1000 PPD) Ceiling-Mounted Dehumidifier

MCH-20G Ceiling-Mounted Dehumidifier

Dehumidification Capacity: 480 L/day (1000 PPD)
Applicable Area: 500–700 m²

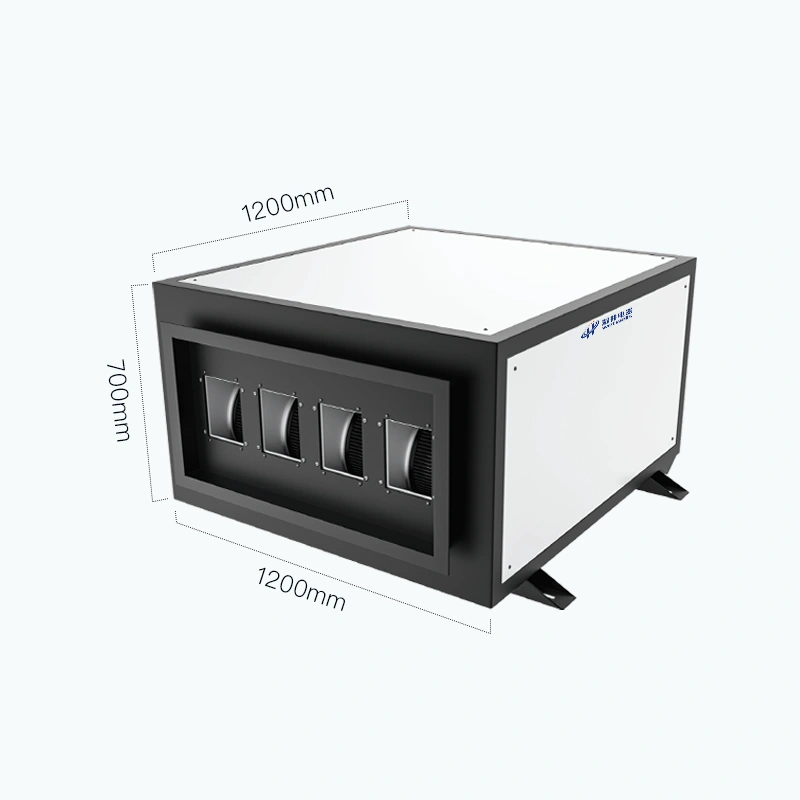

Dimensions: 1200 × 1200 × 700 mm
Heavy-Duty Design: Designed for continuous operation in high-humidity industrial environments.
Strong Air Handling: 5600 m³/h airflow delivers efficient moisture removal across large spaces.

Product Parameters

Model	Dehumidification Capacity (30°C, 80%RH)	Power Supply	Input Power	Refrigerant	Refrigerant Charge
MCH-20G	480 L/day (1000 PPD)	380V / 50Hz	8.3 kW	R22	1700 g × 2
Current	Applicable Area (Ceiling Height 2.8m)	Airflow	Cooling Capacity	Operating Temperature	Control Mode
9.5 A	500–700 m²	5600 m³/h	30000 W	5°C–38°C	Fully Automatic Control
Net Weight	Gross Weight	Drainage	Dimensions (L×W×H)	Inlet Flange	Outlet Flange
180 kg	185 kg	Soft Hose Continuous Drainage	1200 × 1200 × 700 mm	950 × 520 mm	950 × 420 mm
