Desiccant Dehumidifier Manufacturer
Our rotor desiccant dehumidifiers deliver stable 5–95% RH control, efficient moisture removal, and reliable low-dew-point performance for industrial and commercial environments.
With multiple dehumidification capacity ratings, our systems meet your process requirements, installation, and long-term customized humidity-control needs.
- 0.4–30 KG/H Dehumidification Capacity
- 30–5,000 m³/h Airflow Capacity
- Rotor Speed: 5–20 rph
- Stable Operation Down to -20°C
- Ducted Design for HVAC Integration
- OEM/ODM System Customization
How Do Desiccant Dehumidifiers Work?
Desiccant dehumidifiers use a rotating desiccant wheel to capture moisture from humid air. As the rotor turns, one side absorbs water vapor, while the other side is regenerated by heated air for continuous moisture removal.
Humid Air Intake: Moist process air is drawn into the unit through the process air inlet.
Desiccant Rotor Drying: Process air passes through the desiccant rotor, where moisture is absorbed to reduce humidity.
Dry Air Supply: The dried air exits the rotor and is supplied to the room, ductwork, or production area.
Reactivation Heating: Heated reactivation air flows through another rotor section to remove the absorbed moisture.
Moisture Exhaust: The moisture-laden air is discharged from the unit, allowing the rotor to continuously repeat the drying cycle.
By Equipment Design
We provide portable and integrated desiccant dehumidifiers for low-humidity control, flexible installation, stable dry-air supply, and industrial applications.

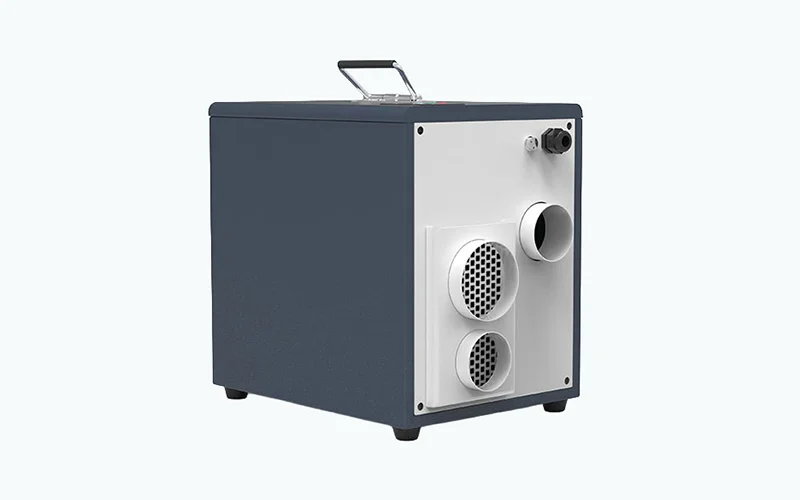

Portable Desiccant Dehumidifier
- Compact, movable design for flexible local humidity control.
- Easy to install, move, operate, and maintain.
- Works well in low-temperature environments where refrigerant units may be limited.
- Suitable for basements, garages, storage rooms, temporary drying, and small industrial spaces.

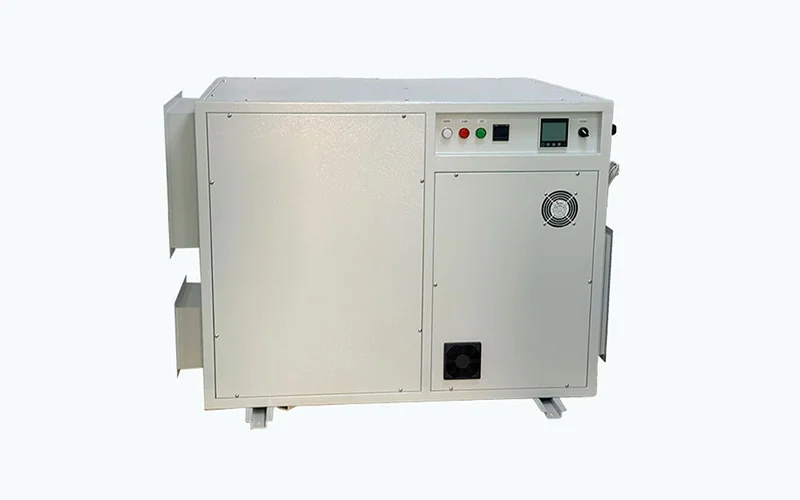

Desiccant Dehumidifier Unit
- Integrated with desiccant wheel, fans, heater, filters, and controls.
- Provides stable dry-air supply for project-based humidity control.
- Customizable in structure, airflow, static pressure, heating method, and intelligent control.
- Suitable for ducted systems, industrial rooms, process areas, and centralized control.
By Rotor Configuration
Our rotor desiccant dehumidifiers offer flexible rotor configurations for different humidity levels, dew-point targets, and industrial drying requirements.

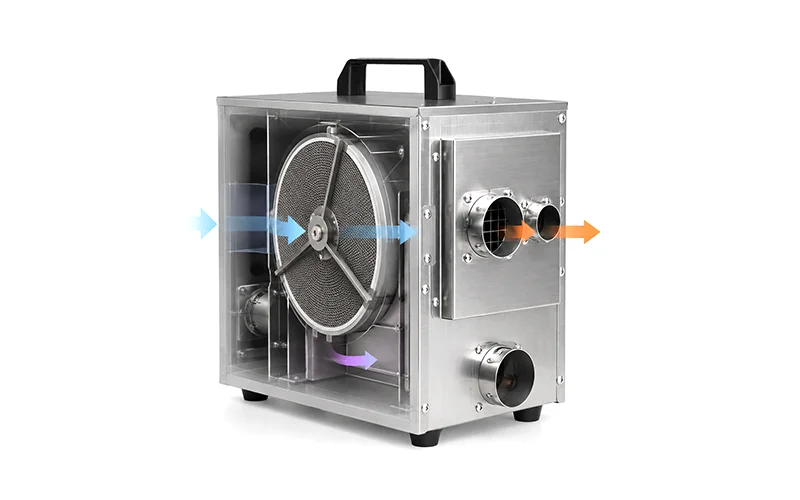

Single-rotor Desiccant Dehumidifier
- Single desiccant rotor handles adsorption and regeneration continuously.
- Simpler airflow path with lower system complexity.
- Suitable for standard low-humidity industrial applications.

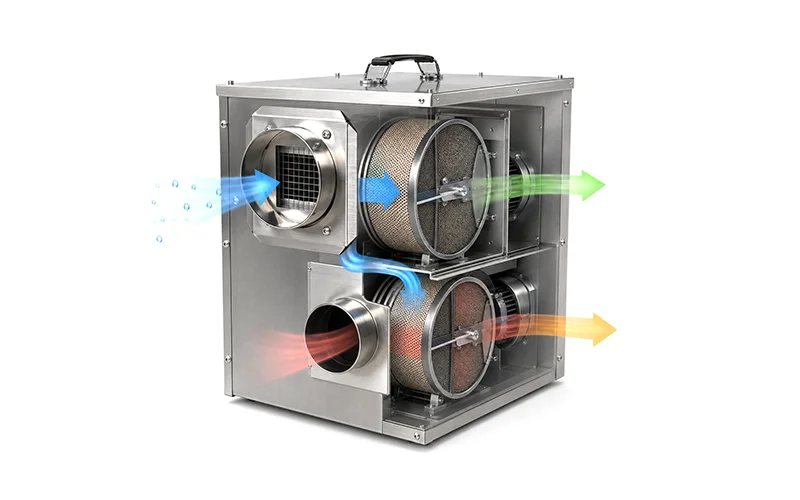

Dual-rotor Desiccant Dehumidifier
- Dual rotors provide staged moisture removal for deeper drying.
- Multi-stage airflow achieves lower humidity and dew points.
- Suitable for precision dry rooms and demanding processes.
Desiccant Wheel Options
Our desiccant dehumidifiers support multiple wheel materials, providing flexible adsorption performance for different humidity levels, dew points, and industrial applications.

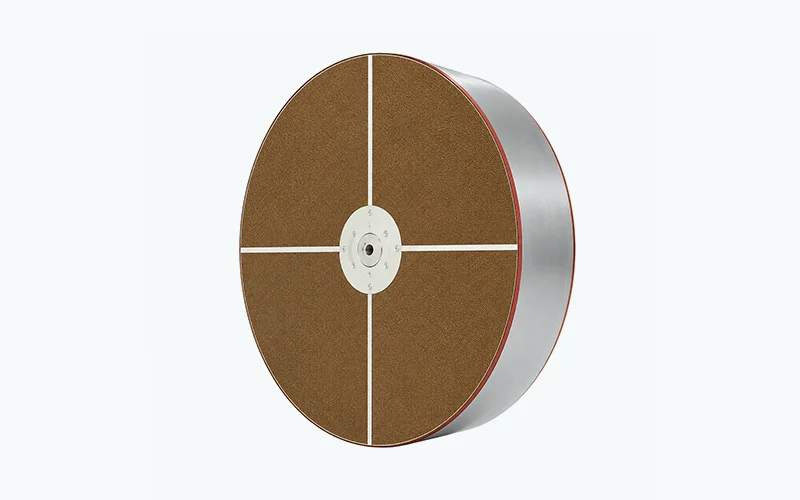

Silica Gel Desiccant Wheel
- Uses porous silica gel with strong surface moisture adsorption.
- Performs well across medium and moderately low humidity ranges.
- Requires relatively moderate heat for effective regeneration.
- Best suited for general industrial humidity control systems.

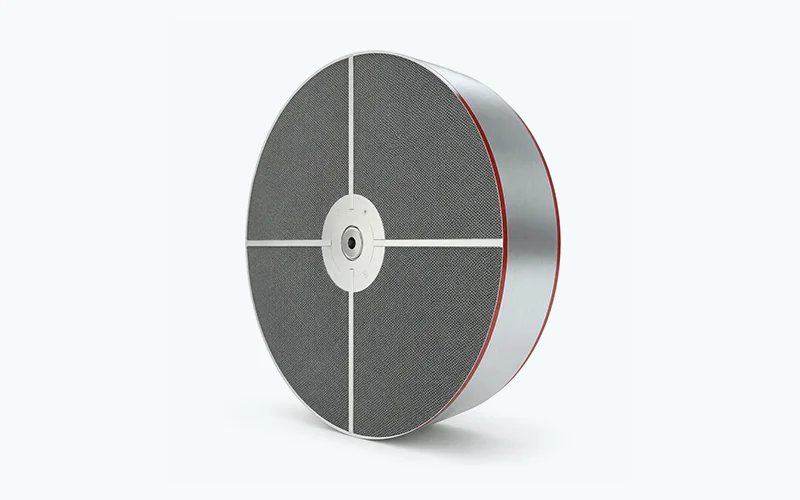

Molecular Sieve Desiccant Wheel
- Uses zeolite molecular sieve with highly selective microporous adsorption.
- Maintains strong moisture capture at very low humidity levels.
- Achieves deeper drying and lower dew-point conditions.
- Best suited for dry rooms and precision manufacturing.

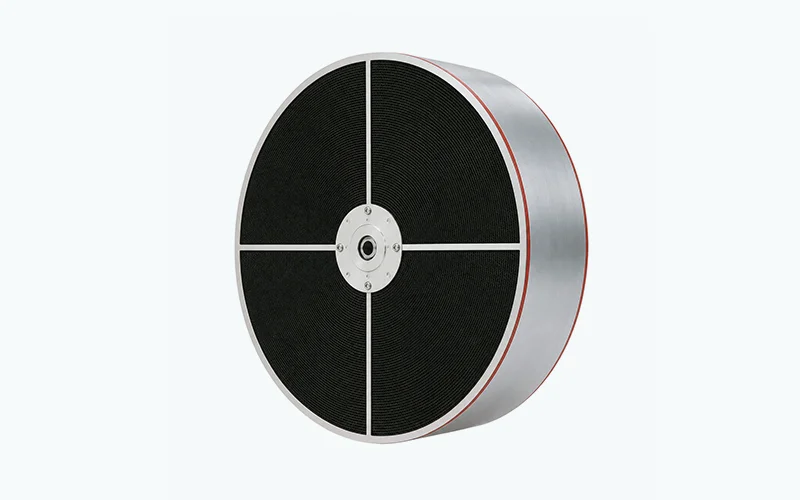

Lithium Chloride Desiccant Wheel
- Uses hygroscopic lithium chloride in a porous rotor matrix.
- Performs well under medium-to-high inlet humidity.
- Regenerates effectively with low to moderate heat.
- Best suited for continuous, high-moisture industrial humidity control.
Desiccant Dehumidifier Regeneration Options
Our desiccant dehumidifiers support multiple regeneration heat sources, allowing flexible system design based on available utilities, capacity, and energy requirements.
| Regeneration Option | Typical Reactivation Temperature | Key Advantage | Best For |
| Electric | 80–140°C | Precise and flexible heating control | Small to medium systems |
| Steam | 100–140°C | High continuous heat output | Large industrial systems |
| Gas | 100–160°C | High heating capacity | High-airflow applications |
| Hot Water | 60–95°C | Utilizes low-grade or recovered heat | Energy-saving systems |
Need Lower Humidity or Dew Point?
Our rotary desiccant systems support demanding low-humidity environments with flexible capacities, configurations, and control options.
Custom Desiccant Dehumidifier Solutions
We customize desiccant dehumidification systems based on room conditions, airflow, installation layout, and process requirements for stable low-humidity control and continuous operation.
Airflow & Static Pressure
Airflow and static pressure can be matched to room size, duct length, filters, bends, and dry-air distribution requirements.
Humidity & Temperature Control
Humidity settings, operating temperature range, and control accuracy can be configured according to different process & environmental requirements.
Desiccant Wheel Configuration
Rotor material, size, speed, and adsorption performance can be selected to match inlet humidity, target RH, and dew-point requirements.
Regeneration Heating Options
Electric, steam, hot water, gas, or waste-heat regeneration can be configured according to available energy sources and operating costs.
Control System Customization
Options include LED display, PLC, touchscreen, alarms, RS485, Modbus, DI signals, remote monitoring, and automatic control.
Structure & Installation
Floor-standing, ducted, modular, and integrated configurations are available with customized air inlets, outlets, filters, and maintenance access.
Why Choose Our Rotary Desiccant Dehumidifier?
Wide Humidity Control
Adjustable 5%–95% RH with automatic start and stop for stable humidity management.
Low-temperature Operation
Operates from -20°C to 50°C, including reliable performance in low-temperature environments.
Multiple Safety Protections
Includes overheat, overload, phase-sequence, high/low-pressure, and temperature protection.
Safe Regeneration System
The heater starts after the fan and shuts off automatically if the rotor stops.
Durable Construction
Stainless steel or powder-coated sheet metal provides corrosion resistance and a design life of 10+ years.
Continuous Operation
Supports up to 720 hours of full-load operation with IP44 overall and IP54 electrical protection.
Featured Products
MCH-80XF-01 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 0.4 kg/h
- Process Airflow: Adjustable 10–100 m³/h
- Reactivation Airflow: 30 m³/h
- Desiccant Wheel: 160 × 60 mm
MCH-100XF-01 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 0.45 kg/h
- Process Airflow: Adjustable 10–120 m³/h
- Reactivation Airflow: 60 m³/h
- Desiccant Wheel: 200 × 50 mm
MCH-100XF-02 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 0.5 kg/h
- Process Airflow: 150 m³/h
- Reactivation Airflow: 70 m³/h
- Desiccant Wheel: 200 × 50 mm
MCH-200XF-01 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 0.83 kg/h
- Process Airflow: 200 m³/h
- Reactivation Airflow: 80 m³/h
- Desiccant Wheel: 200 × 50 mm
MCH-350XF-02 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 2.5 kg/h
- Process Airflow: 400 m³/h
- Reactivation Airflow: 130 m³/h
- Desiccant Wheel: 250 × 100 mm
MCH-750XF-01 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 4.5 kg/h
- Process Airflow: 750 m³/h
- Reactivation Airflow: 250 m³/h
- Desiccant Wheel: 350 × 200 mm
MCH-1000XF-01 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 8 kg/h
- Process Airflow: 1100 m³/h
- Reactivation Airflow: 400 m³/h
- Desiccant Wheel: 450 × 100 mm
MCH-2500XF-01 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 15 kg/h
- Process Airflow: 2500 m³/h
- Reactivation Airflow: 900 m³/h
- Desiccant Wheel: 700 × 200 mm
MCH-4000XF-02 Rotary Desiccant Dehumidifier
- Dehumidification Capacity: 25 kg/h
- Process Airflow: 4200 m³/h
- Reactivation Airflow: 1500 m³/h
- Desiccant Wheel: 800 × 200 mm
Applications
Desiccant dehumidifiers are used in low-temperature, low-humidity, and moisture-sensitive environments to protect materials, reduce condensation, and support stable operation.

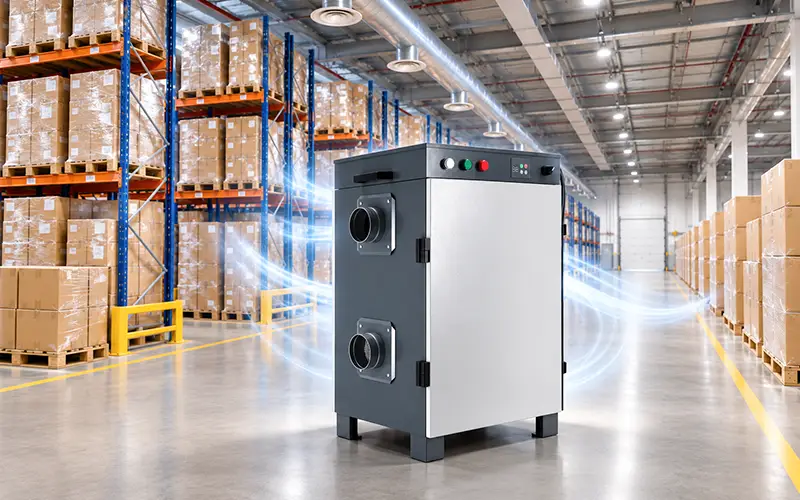

Protects cartons, labels, pallets, raw materials, and finished goods, while ducted dry-air and zoned control maintain uniform RH without occupying floor space.

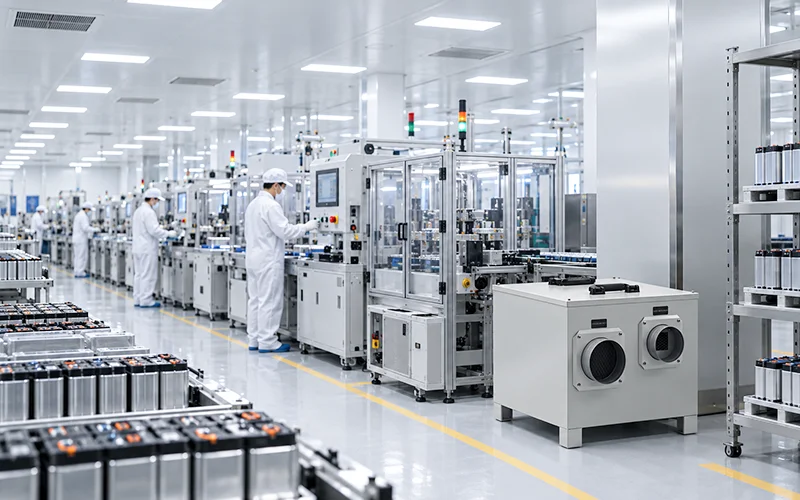

Prevents micro-condensation on PCBs, sensors, optics, while low-dew-point air supports drying, curing, assembly, and sensitive components.

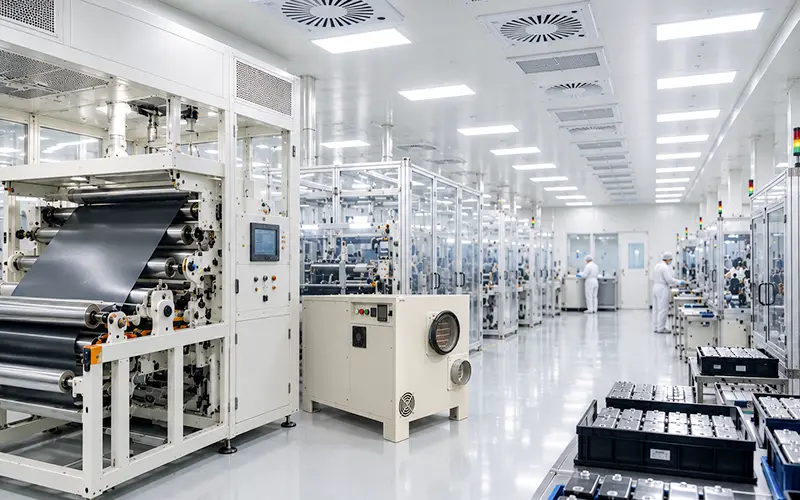

Lithium Battery Dry Rooms
Provides ultra-dry air for electrode production, coating, cell assembly, and storage, helping maintain low-dew-point conditions for sensitive battery processes.

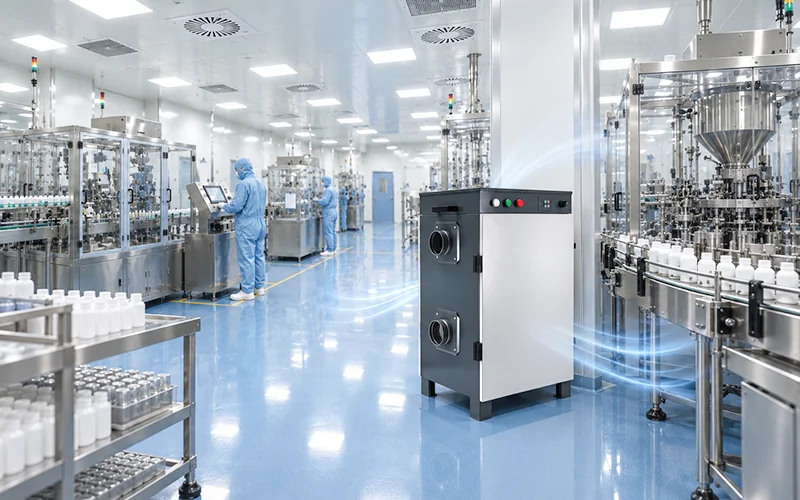

Maintains controlled humidity in clean rooms, production areas, storage rooms, and packaging lines, protecting powders, tablets, capsules, and batch quality.

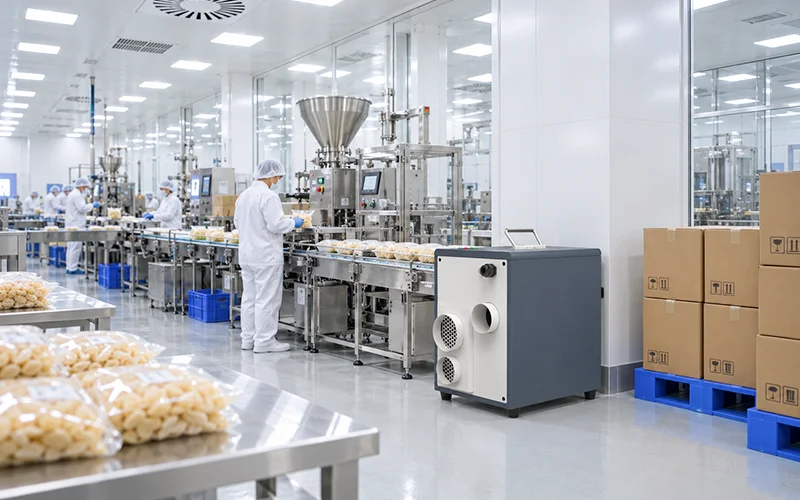

Food Processing & Packaging
Reduces caking, sticking, clumping, mold growth, label lift, seal defects, and packaging moisture, supporting reliable flow and shelf-life protection.

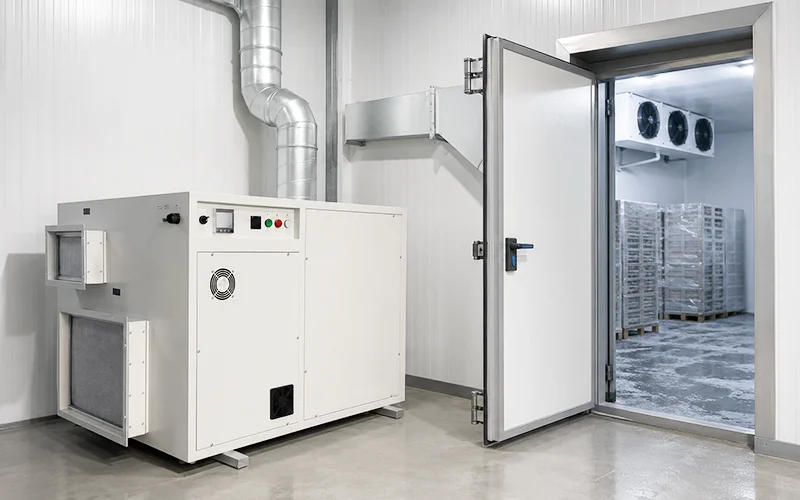

Suppresses frost, ice buildup, and condensation near doors, evaporators, cold docks, and freezer rooms, reducing defrost cycles and improving uptime.

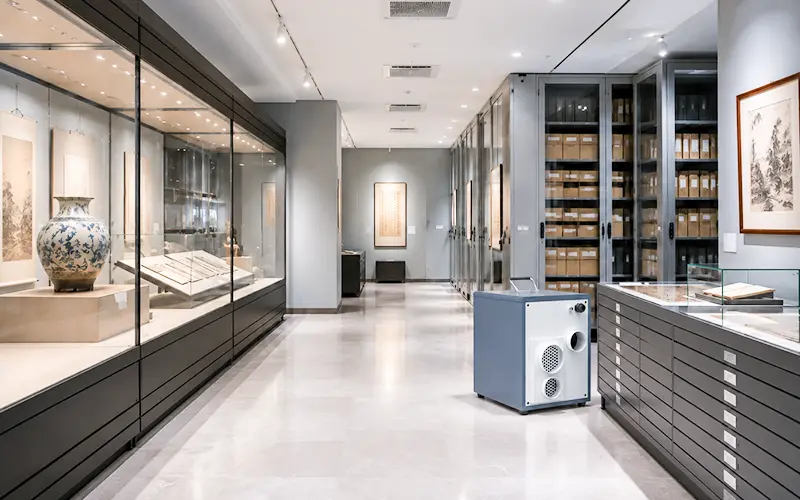

Museums & Archives
Stabilizes RH for museums, archives, libraries, galleries, cultural collections, and biological sample banks, reducing mold, deformation, and long-term moisture damage.

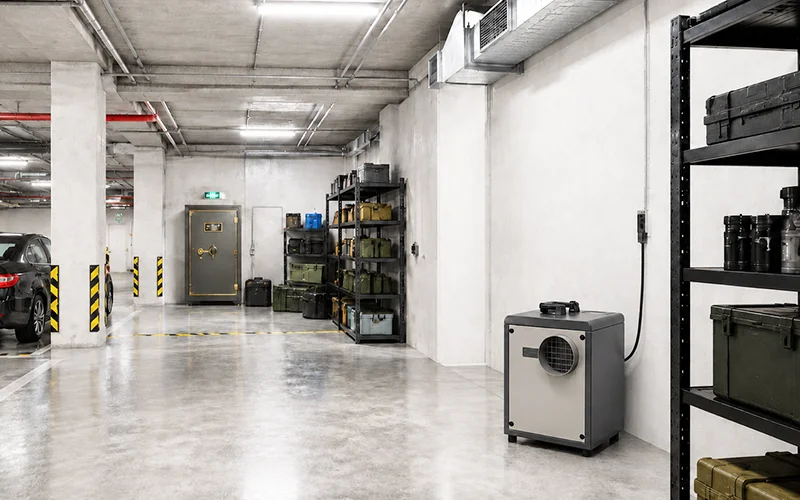

Controls dampness in basements, underground garages, gun safes, civil defense spaces, and enclosed storage, reducing condensation, odors, mold risk, and corrosion.
FAQs
What humidity range can a desiccant dehumidifier control?
Depending on system design, our desiccant dehumidifiers can support stable humidity control from 5% to 95% RH.
How is the desiccant rotor regenerated?
The rotor uses electric regeneration heating at 110 ± 10°C to remove absorbed moisture and maintain stable continuous drying performance.
Can you customize a desiccant dehumidifier for my project?
Yes. We customize airflow, capacity, rotor size, duct interface, structure, controls, power supply, and installation design.
Can desiccant dehumidifiers work with HVAC systems?
Yes. Our desiccant dehumidifiers can be designed for HVAC-ready ducted integration where temperature and humidity control are required.
What standard controls, filters, and protections are included?
Each unit comes with a PLC controller, access-door structure, G4-grade filters, rotor auto-stop, delay-time protection, and fault location function.
What power supply can your desiccant dehumidifiers support?
We can support common industrial power supplies, including 220V, 380V, 50Hz, 60Hz, and customized electrical standards.
Can the system operate in low-temperature environments?
Yes. Our desiccant dehumidifiers support low-temperature operation down to -20°C, making them suitable for cold rooms, winter operation, and low-dew-point applications.
What industries use desiccant dehumidifiers?
They are widely used in lithium batteries, electronics, pharmaceuticals, cold storage, food processing, warehouses, archives, and precision manufacturing.
What after-sales support do you provide?
We provide technical guidance, installation support, operation instructions, spare parts support, troubleshooting assistance, and long-term service communication.
How do you package desiccant dehumidifiers for shipment?
We use protective export packaging, usually including foam, film, wooden cases, and reinforced packing for safe international transportation.
