MCH-25 Temperature Controlled Dehumidifier

Dehumidification Capacity: 600 L/day (1250 PPD)
Cooling Capacity: 32 kW
Heating Capacity: 12 kW

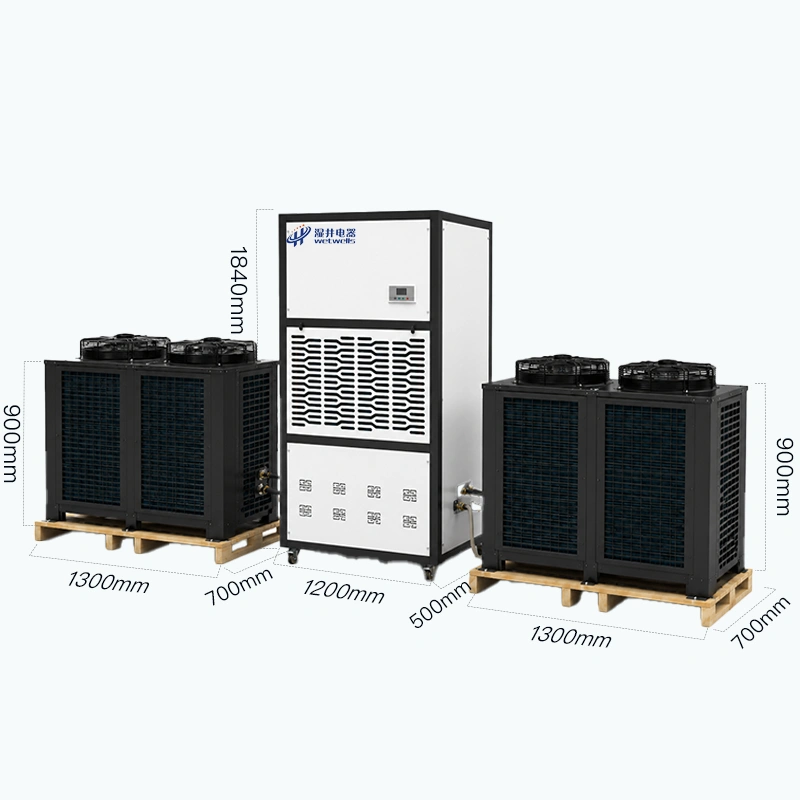

Indoor Unit Dimensions: 1200 × 500 × 1840 mm
High-Capacity Regulation: Provides powerful dehumidification with wider cooling and heating capability.
Enhanced Air Handling: 5000 m³/h airflow and 200 Pa pressure improve air distribution.

Product Parameters

Model	Dehumidification Capacity (30°C, 90% RH)	Cooling Capacity	Heating Capacity	Power Supply
MCH-25	600 L/day (1268 PPD)	32 kW	12 kW	3N~380V / 50Hz
Airflow	External Static Pressure	Operating Temperature	Refrigerant	Control Mode
5000 m³/h	200 Pa	5°C–38°C	R410A	Microcomputer Automatic Control
Airflow Direction	Indoor Unit Dimensions (L×W×H)	Indoor Unit Weight	Outdoor Unit Dimensions (L×W×H)	Outdoor Unit Weight
Front Air Inlet / Top Air Outlet	1200 × 500 × 1840 mm	140 kg	1300 × 700 × 900 mm	180 kg
Humidity Display	Automatic Defrost	Humidity Control	Timer Control	Protection & Alarm
LED Temperature & Humidity Display	Automatic	Automatic Humidity Control	Timed On/Off	Phase Protection & Fault Alarm
Compressor	Fan	Humidity Sensor	Heat Exchanger	Controller
HIGHLY Compressor	Zhejiang Jiale Centrifugal Fan (5000 m³/h, 200 Pa)	Hokuriku, Japan Electronic Sensor	OAK Heat Exchanger	Keyu Microcomputer Controller
