MCH-25CW Cooling Dehumidifier

  • Dehumidification Capacity: 600 L/day (1250 PPD)
  • Cooling Capacity: 32 kW

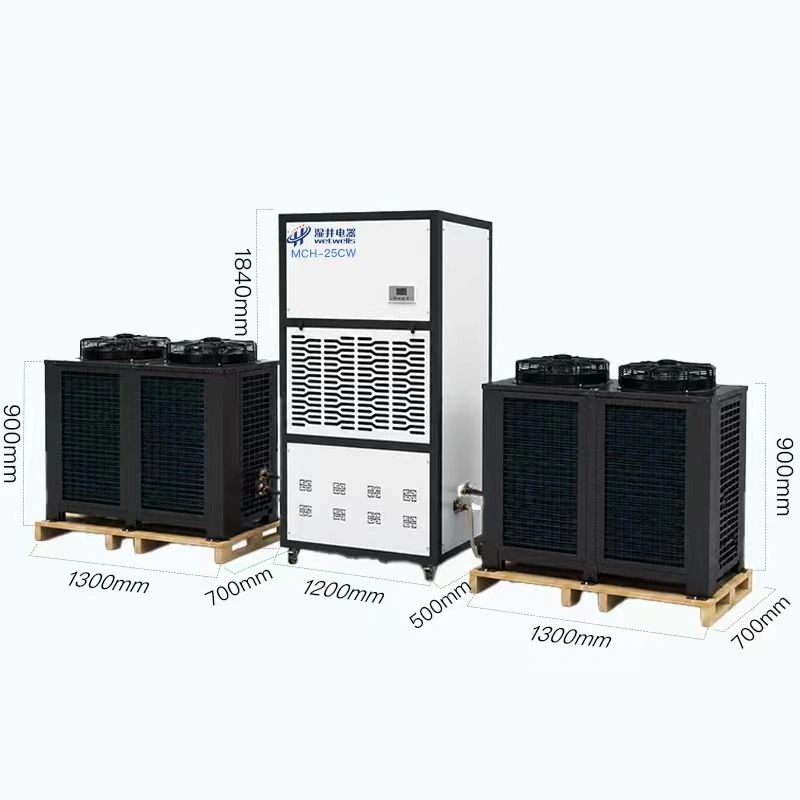

  • Indoor Unit Dimensions: 1200 × 500 × 1840 mm
  • High-Capacity Cooling: Handles demanding temperature and humidity control requirements.
  • Enhanced Air Handling: 5000 m³/h airflow and 200 Pa pressure improve distribution.

Technical Specifications

Model Dehumidification Capacity (30°C, 90% RH) Cooling Capacity Power Supply Airflow External Static Pressure
MCH-25CW 25 L/h (600 L/day) 32 kW 3N~380V / 50Hz 5000 m³/h 200 Pa
Operating Temperature Refrigerant Airflow Direction Indoor Unit Dimensions (L×W×H) Indoor Unit Weight Control Mode
5°C–38°C R410A Front Air Inlet / Top Air Outlet 1200 × 500 × 1840 mm 140 kg Microcomputer Automatic Control
Outdoor Unit Dimensions (L×W×H) Outdoor Unit Weight Humidity Display Automatic Humidity Control Automatic Defrost Timer & Protection
1300 × 700 × 900 mm 180 kg LED Temperature & Humidity Display Automatic Automatic Timed On/Off, Phase Protection & Fault Alarm

Basic Configuration

Component Brand / Material Specifications / Features
Compressor HIGHLY High-efficiency twin-rotary compressor
Fan Zhejiang Jiale Centrifugal fan, 5000 m³/h airflow, 200 Pa pressure
Humidity Sensor Hokuriku, Japan Electronic humidity sensing
Heat Exchanger OAK Production Line Copper tubes with aluminum fins and hydrophilic coating
Microcomputer Controller Keyu LCD display with intelligent automatic control
Housing Painted Sheet Metal Durable coated metal cabinet
