Working Principle

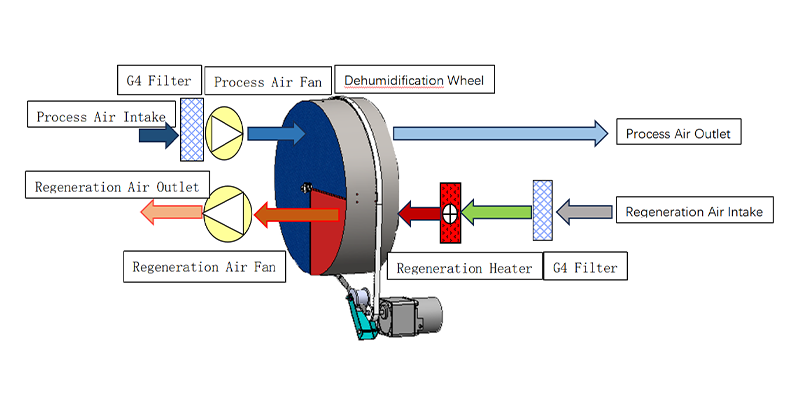

The system operates with two independent airflow paths working continuously around the rotating desiccant wheel:
- Process Side: G4 Filter → Process Air Fan → Desiccant Wheel → Dry Process Air
- Regeneration Side: G4 Filter → Regeneration Heater → Desiccant Wheel → Regeneration Air Fan → Moist Air Exhaust
As the wheel rotates, one section adsorbs moisture from process air while another section is regenerated by heated air, enabling continuous dehumidification.

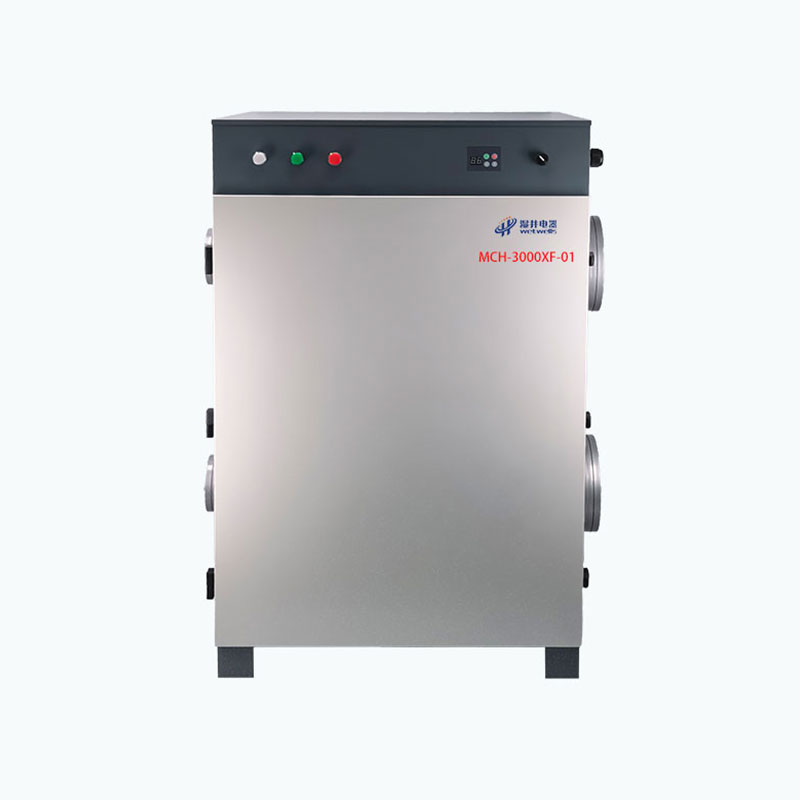

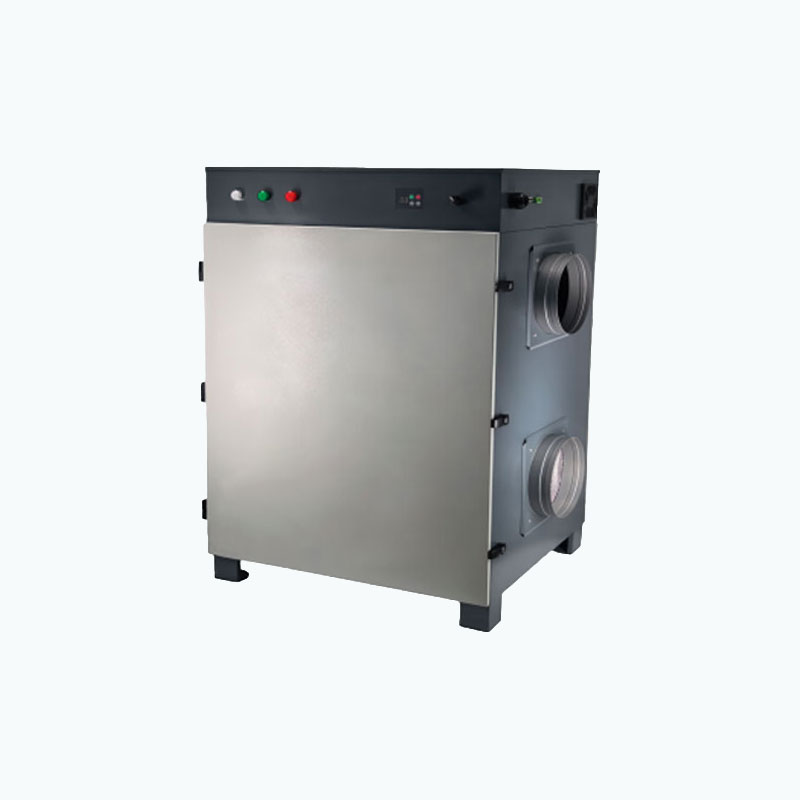

Product Parameters
| Model | Dehumidification Capacity (20°C, 60% RH) | Power Supply | Rated Power | Maximum Power | Rated Current |
| MCH-3000XF-01 | 20 kg/h | 380V / 50Hz | 23 kW | 25 kW | 45 A |
| Process Airflow | Reactivation Airflow | Process Air External Static Pressure | Reactivation Air External Static Pressure | Process Air Duct Diameter | Reactivation Air Duct Diameter |
| 3000 m³/h | 1100 m³/h | 400 Pa | 280 Pa | Φ400 mm × 2 | Φ250 mm × 2 |
| Desiccant Rotor Size | Filtration Device | Operating Temperature | Dimensions (L×W×H) | Weight | Humidity Setting Range |

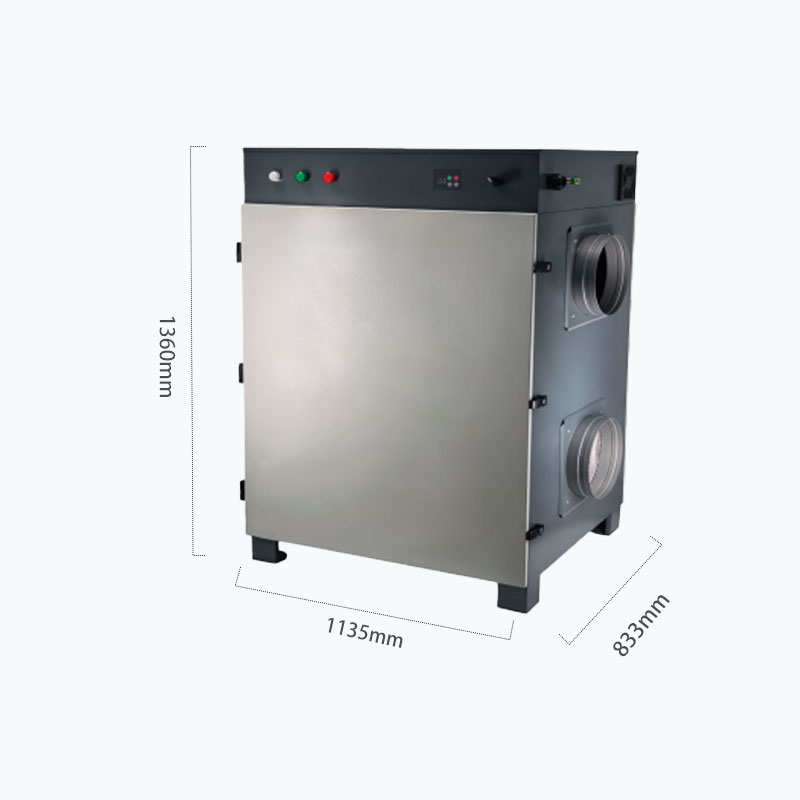

| 700 × 200 mm | Primary Filter | -10°C–50°C | 1135 × 833 × 1360 mm | 300 kg | 5%–95% RH |

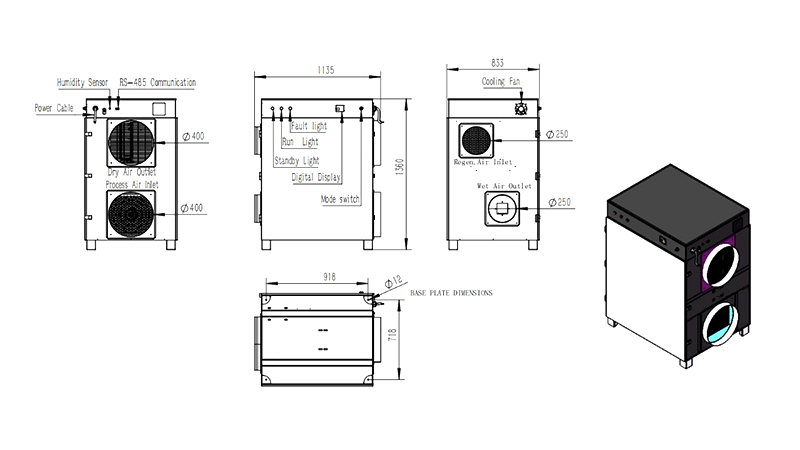

Integrated Airflow & Control Design
- Dual Airflow Design: Ø400 mm process air connections handle high-volume dry air, while Ø250 mm regeneration connections provide an independent regeneration circuit.
- Intelligent Control: Humidity sensor, digital display, RS-485 communication, and mode switch support convenient monitoring and system integration.
- Status Monitoring: Run, standby, and fault indicators allow quick identification of operating conditions.

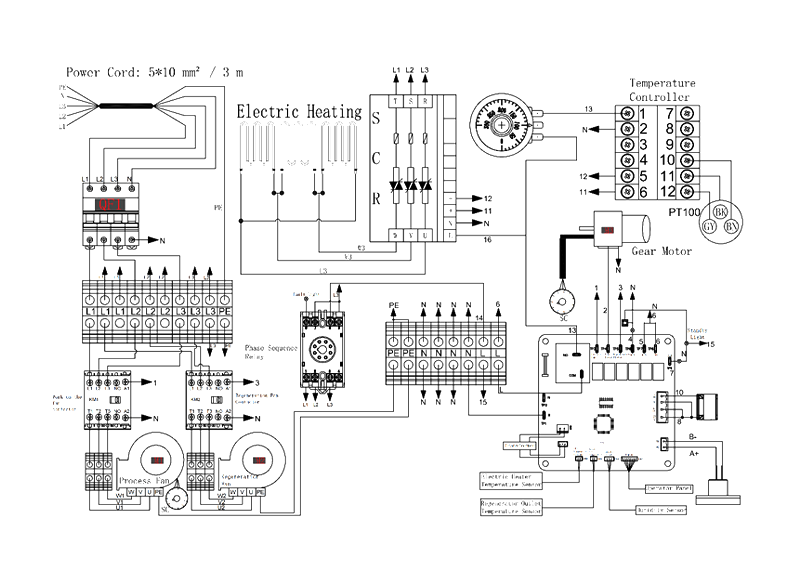

Circuit Diagram
