Technical Specifications
| Model | Dehumidification Capacity (30°C, 90% RH) | Cooling Capacity | Power Supply | Airflow | External Static Pressure |
| MCH-30CW | 30 L/h (720 L/day) | 40 kW | 3N~380V / 50Hz | 6000 m³/h | 200 Pa |
| Operating Temperature | Refrigerant | Airflow Direction | Control Mode | Automatic Defrost | Humidity Display |
| 5°C–38°C | R410A | Front Air Inlet / Top Air Outlet | Microcomputer Automatic Control | Automatic | LED Temperature & Humidity Display |

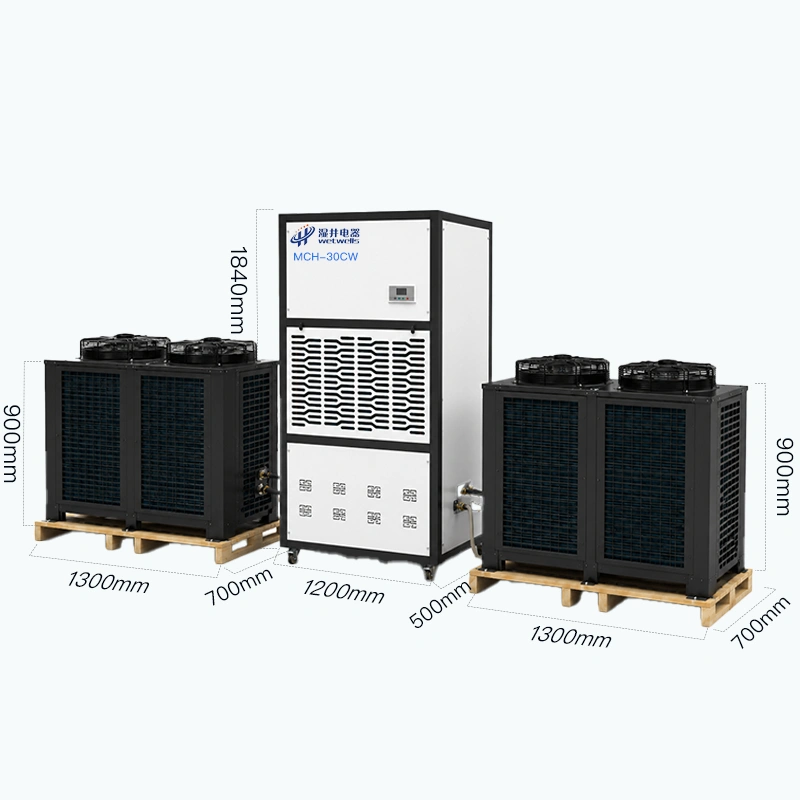

| Indoor Unit Dimensions (L×W×H) | Outdoor Unit Dimensions (L×W×H) | Automatic Humidity Control | Timer Control | Phase Protection | Fault Alarm |
| 1300 × 680 × 1920 mm | 1300 × 700 × 900 mm | Automatic | Timed On/Off | Yes | Automatic |
Basic Configuration
| Component | Brand / Material | Specifications / Features |
| Compressor | HIGHLY | High-efficiency twin-rotary compressor |
| Fan | Zhejiang Jiale | Centrifugal fan, 6000 m³/h airflow, 200 Pa pressure |
| Humidity Sensor | Hokuriku, Japan | Electronic humidity sensing |
| Heat Exchanger | OAK Production Line | Copper tubes with aluminum fins and hydrophilic coating |
| Microcomputer Controller | Xiangtai | LCD display with intelligent automatic control |
| Housing | Painted Sheet Metal | Durable coated metal cabinet |
