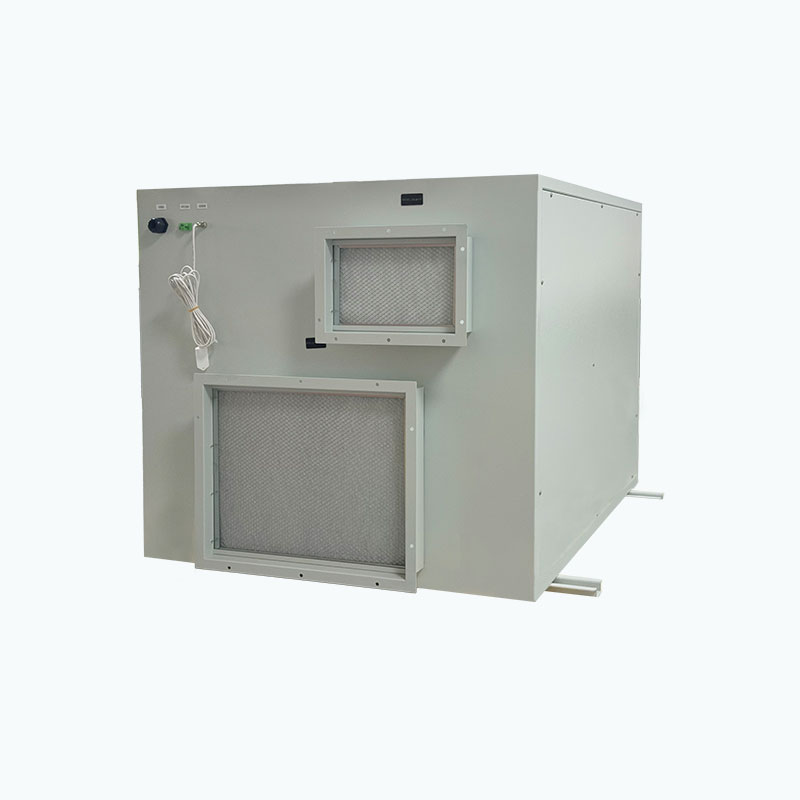

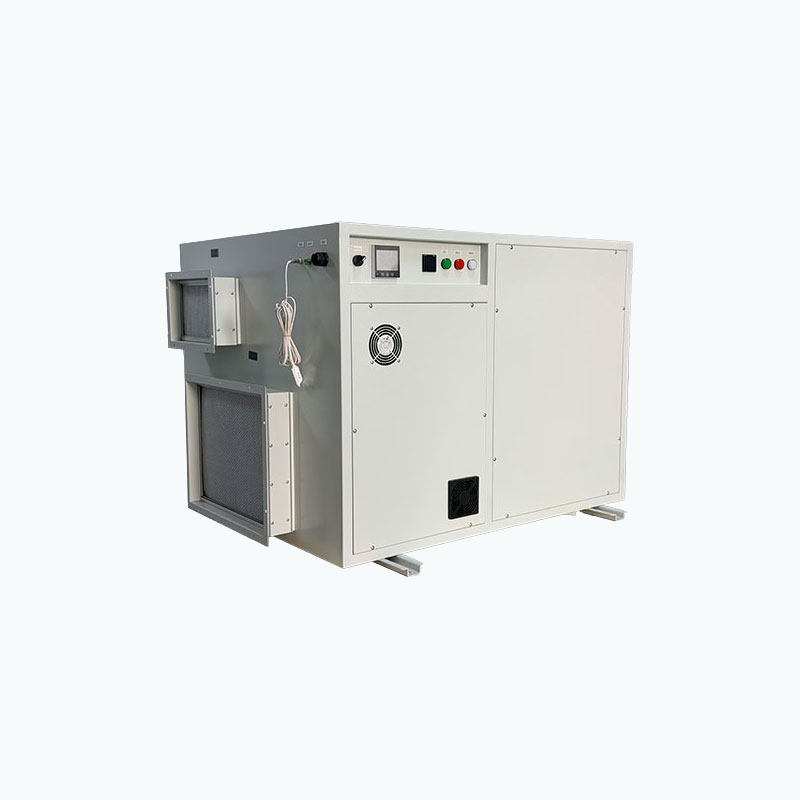

MCH-4500XF-01 Rotary Desiccant Dehumidifier

Dehumidification Capacity: 27 kg/h
Process Airflow: 4500 m³/h
Dehumidification Wheel: 800 × 200 mm

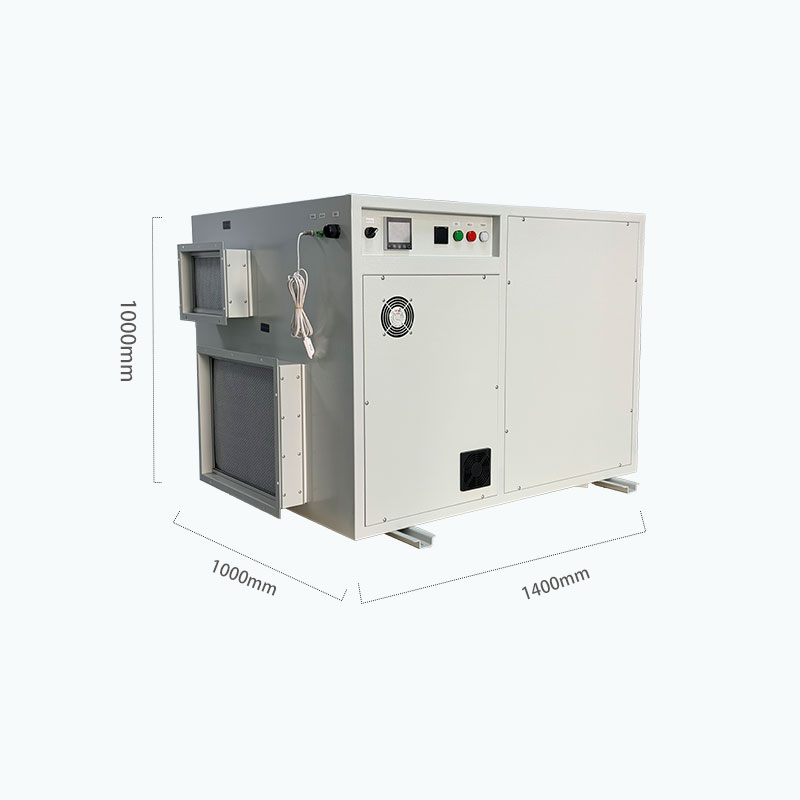

Dimensions: 1400 × 1000 × 1000 mm
High-Volume Air Treatment: Supports large production and controlled environments.
Efficient Regeneration: 1600 m³/h reactivation airflow maintains continuous rotor performance.

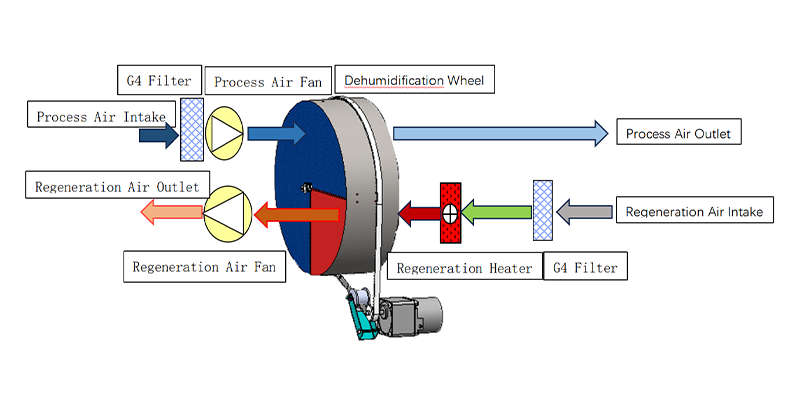

Working Principle

Filter the Air: G4 filters remove dust from both process and regeneration air streams.
Moisture Absorption: The rotating desiccant wheel captures moisture from the process air.
Supply Dry Air: The treated low-humidity air is delivered through the process air outlet.
Regenerate the Wheel: Heated regeneration air releases the moisture stored in the desiccant material.
Exhaust Moisture: The regeneration fan discharges the moisture-laden air outside.
Repeat Continuously: The wheel keeps rotating, allowing drying and regeneration to operate at the same time.

Model	Dehumidification Capacity (20°C, 60% RH)	Power Supply	Rated Power	Maximum Power	Rated Current
MCH-4500XF-01	27 kg/h	380V / 50Hz	31 kW	35 kW	60 A
Process Airflow	Reactivation Airflow	Process Air External Static Pressure	Reactivation Air External Static Pressure	Process Air Duct Size	Reactivation Air Duct Size
4500 m³/h	1600 m³/h	400 Pa	280 Pa	500 × 400 mm × 2	300 × 200 mm × 2
Desiccant Rotor Size	Filtration Device	Operating Temperature	Dimensions (L×W×H)	Weight	Humidity Setting Range
800 × 200 mm	Primary Filter	-10°C–50°C	1400 × 1000 × 1000 mm	370 kg	5%–95% RH

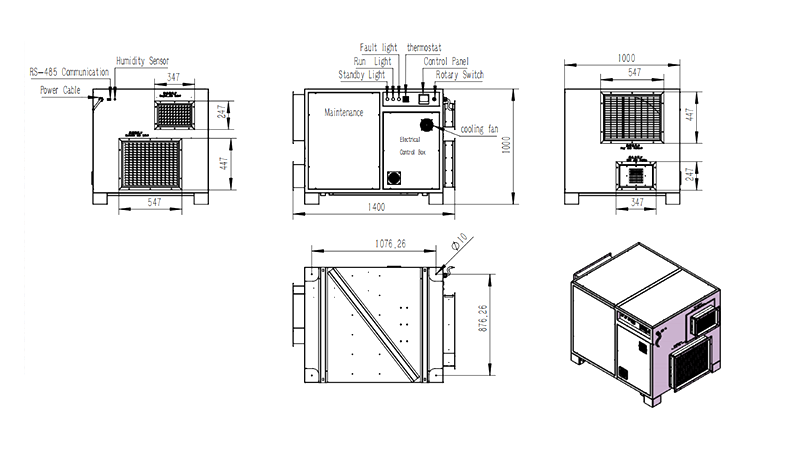

Humidity sensor and RS-485 support real-time monitoring and external system integration.

Standby, run, and fault indicators provide clear equipment status.

Control panel, thermostat, and rotary switch allow convenient on-site operation.

Large service access and centralized electrical layout simplify inspection and maintenance.

Built-in cooling fan supports stable operation, while Ø10 mounting points provide secure installation.
