MCH-7 Temperature Controlled Dehumidifier

Dehumidification Capacity: 168 L/day (350 PPD)
Cooling Capacity: 7.2 kW
Heating Capacity: 5 kW

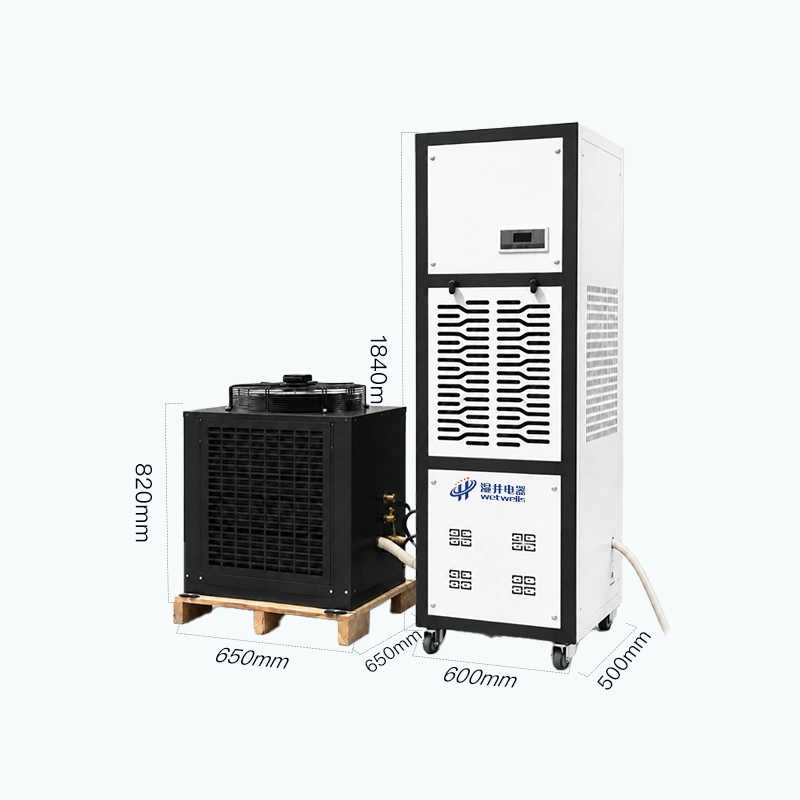

Indoor Unit Dimensions: 600 × 500 × 1840 mm
Flexible Temperature Control: Combines dehumidification, cooling, and heating for smaller controlled environments.
Compact Airflow: 1800 m³/h airflow with 80 Pa pressure supports stable air distribution.

Product Parameters

Model	Dehumidification Capacity (30°C, 90% RH)	Cooling Capacity	Heating Capacity	Power Supply
MCH-7	168 L/day (350 PPD)	7.2 kW	5 kW	3N~380V / 50Hz
Airflow	External Static Pressure	Operating Temperature	Refrigerant	Control Mode
1800 m³/h	80 Pa	5°C–38°C	R22	Microcomputer Automatic Control
Airflow Direction	Indoor Unit Dimensions (L×W×H)	Indoor Unit Weight	Outdoor Unit Dimensions (L×W×H)	Outdoor Unit Weight
Front Air Inlet / Top Air Outlet	600 × 500 × 1840 mm	70 kg	650 × 650 × 820 mm	75 kg
Humidity Display	Automatic Defrost	Humidity Control	Timer Control	Protection & Alarm
LED Temperature & Humidity Display	Automatic	Automatic Humidity Control	Timed On/Off	Phase Protection & Fault Alarm
Compressor	Fan	Humidity Sensor	Heat Exchanger	Controller
HIGHLY Compressor	Dongfang Centrifugal Fan (1800 m³/h, 80 Pa)	Hokuriku, Japan Electronic Sensor	OAK Heat Exchanger	Xiangtai Microcomputer Controller
