MCH-7G 180 L/day (380 PPD) Ceiling-Mounted Dehumidifier

MCH-7G Ceiling-Mounted Dehumidifier

Dehumidification Capacity: 180 L/day (380 PPD)
Applicable Area: 200–300 m²

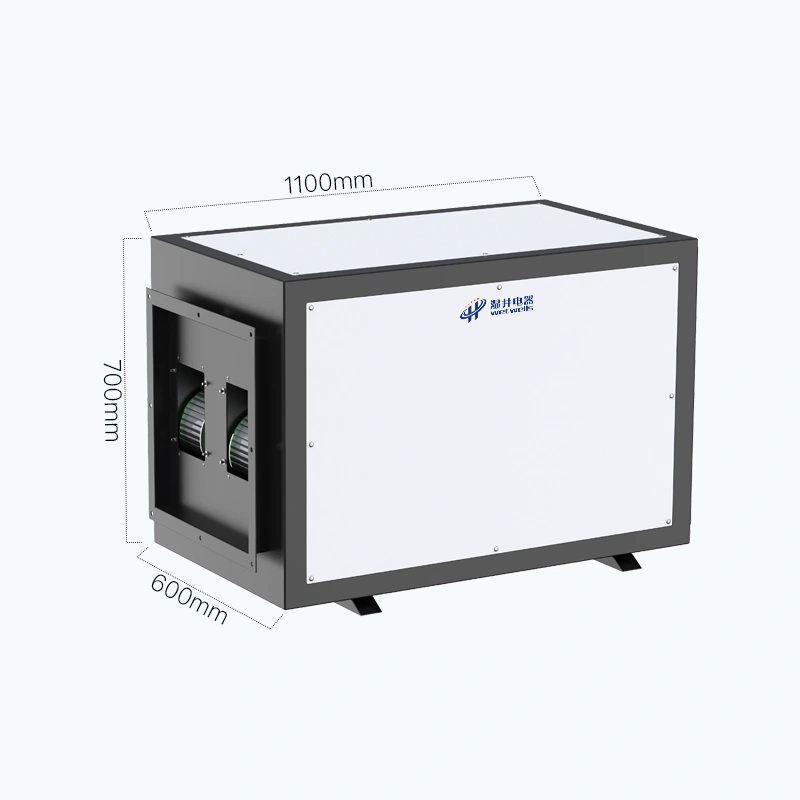

Dimensions: 1100 × 600 × 700 mm
Enhanced Airflow: 2400 m³/h airflow improves circulation in larger rooms and commercial areas.
Duct Integration: Larger flange design supports flexible concealed ceiling installation.

Product Parameters

Model	Dehumidification Capacity (30°C, 80%RH)	Power Supply	Input Power	Refrigerant	Refrigerant Charge
MCH-7G	180 L/day (380 PPD)	380V / 50Hz	3.5 kW	R22	1000 g
Current	Applicable Area (Ceiling Height 2.8m)	Airflow	Cooling Capacity	Operating Temperature	Control Mode
4.2 A	200–300 m²	2400 m³/h	6000 W	5°C–38°C	Fully Automatic Control
Net Weight	Gross Weight	Drainage	Dimensions (L×W×H)	Inlet Flange	Outlet Flange
80 kg	84 kg	Soft Hose Continuous Drainage	1100 × 600 × 700 mm	430 × 550 mm	430 × 450 mm
